$210.00

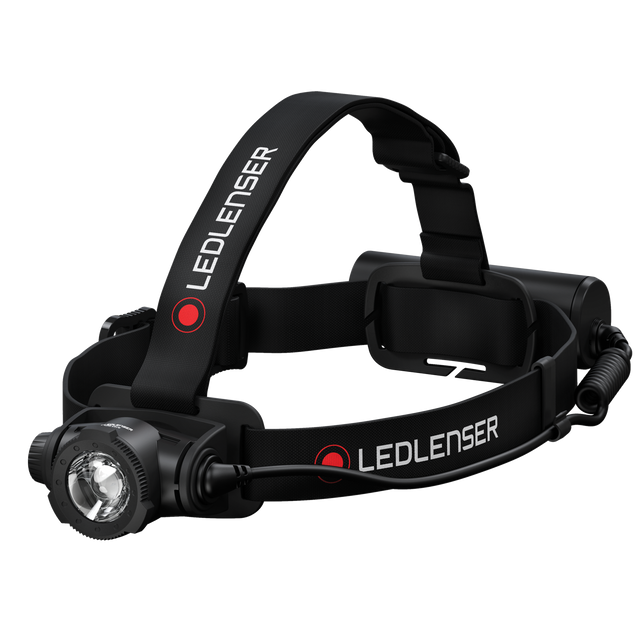

H7R CORE HEADLAMP
Rechargeable headlamp with superior protection against dust and water
- Lumens
- 1000 lm
- Beam distance
- 250 m
- Runtime
- 65.0 h
- Rechargeable
- Yes
- Water resistance
- Yes
- IP rating
- IP67
SKU: 880506-502122
Available
Description

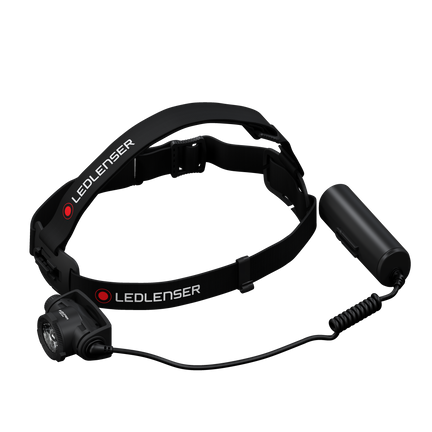

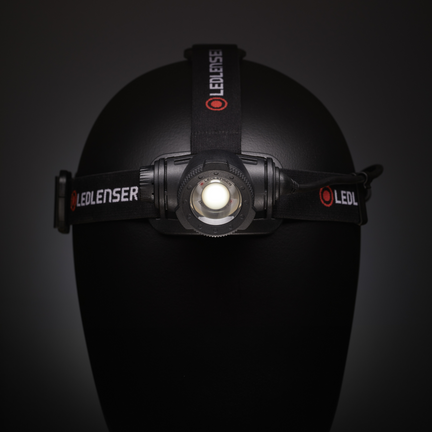

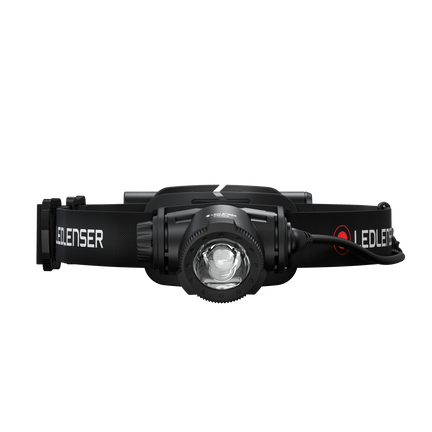

The Ledlenser H7R Core is a powerful, durable and continuously dimmable headlamp for versatile hands-free lighting. Its Advanced Focus System lets you transition from a broad flood beam to a sharply focused long-distance beam. With 130° of lamp head rotation, magnetic charging and IP67 dust and water protection, it is a practical multi-purpose portable light.
Features

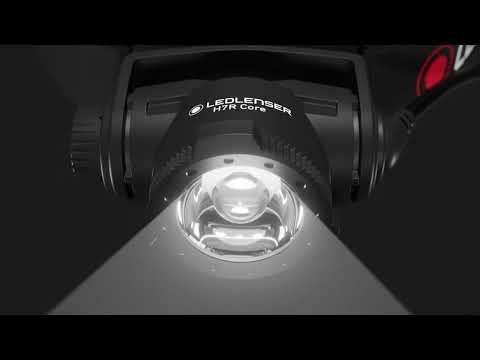

- Advanced Focus System for adjustable flood and spot lighting.

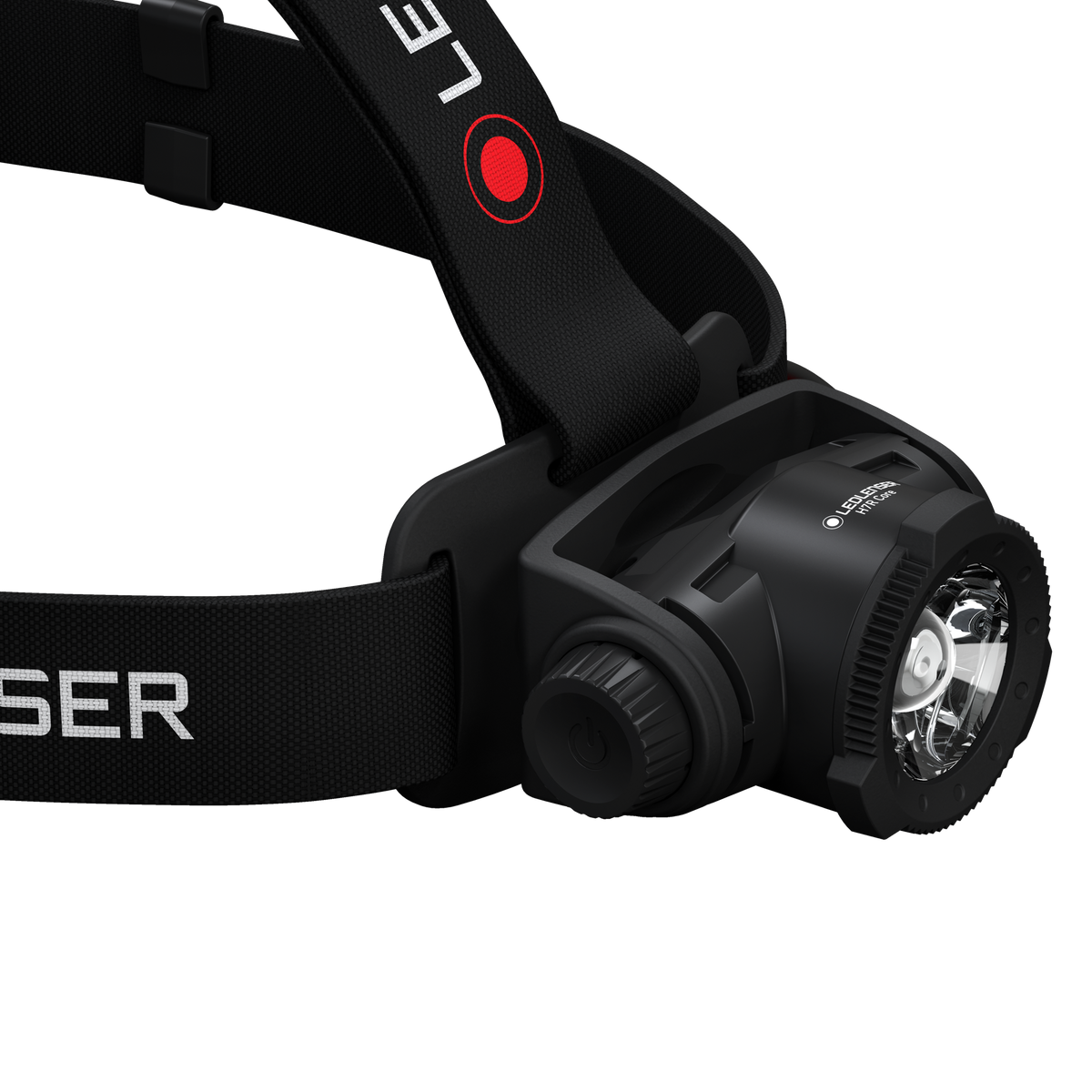

- Intuitive operation and stepless dimming with the Wheel Switch.

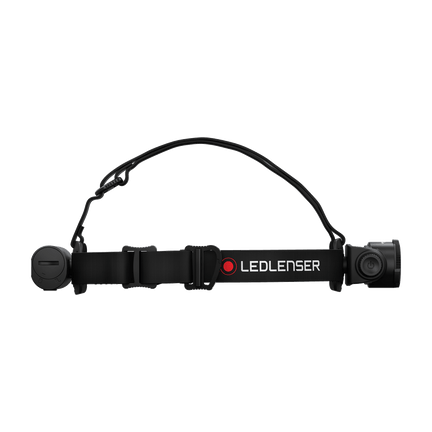

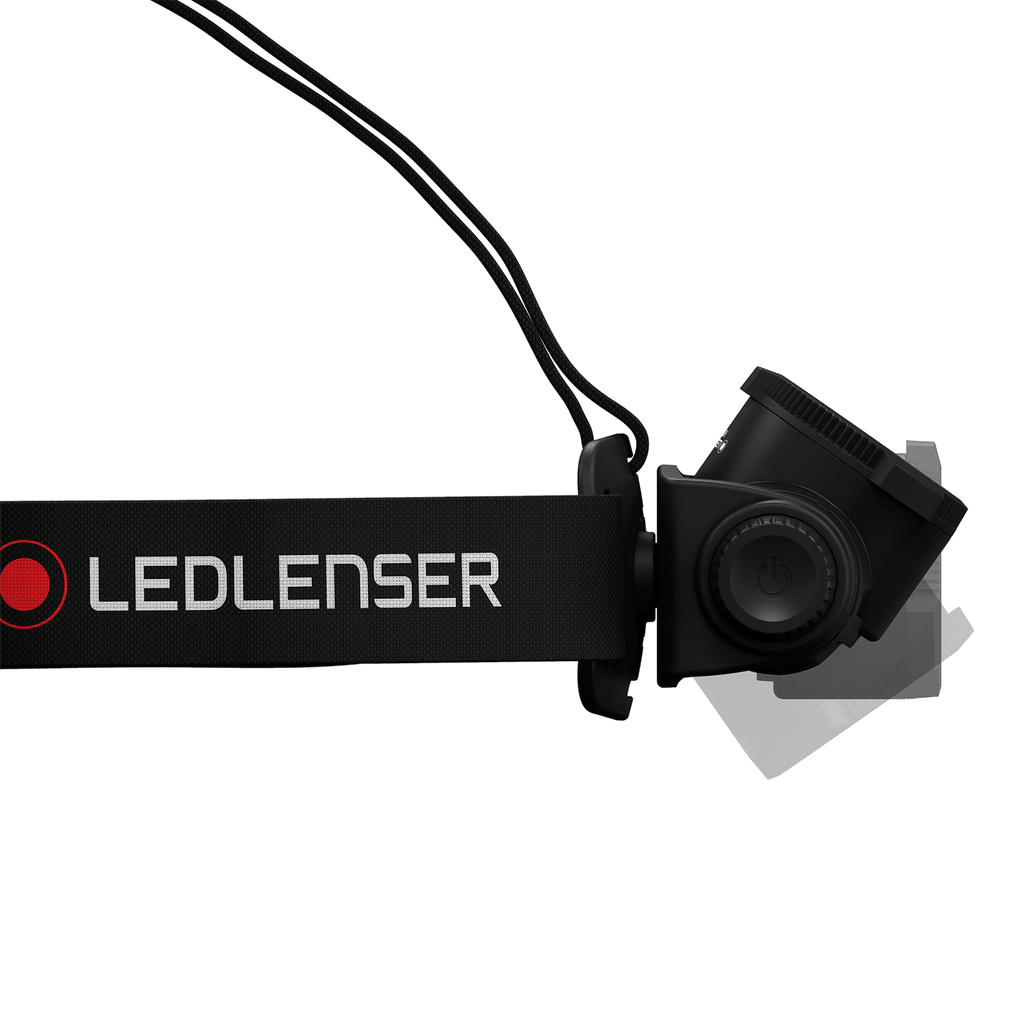

- 130° stepless lamp head rotation.
- Magnetic Charge System.

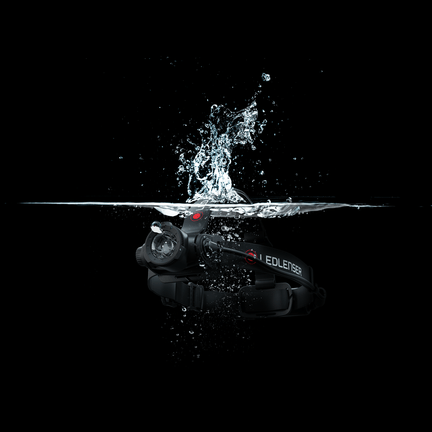

- Flex Sealing Technology with IP67 dust and water protection.
- Transportation Lock, Flicker Free, Memory Function and Backup Mode.
- Temperature Control System and Cooling Technology.

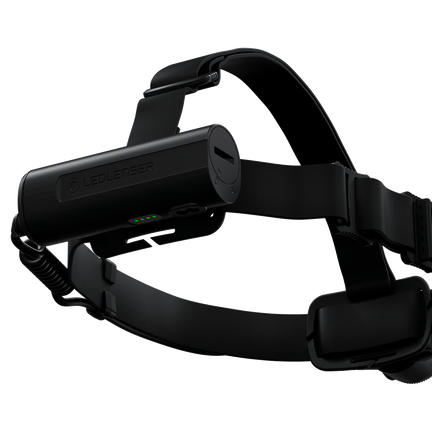

- Battery indicator, charge indicator and low battery warning.

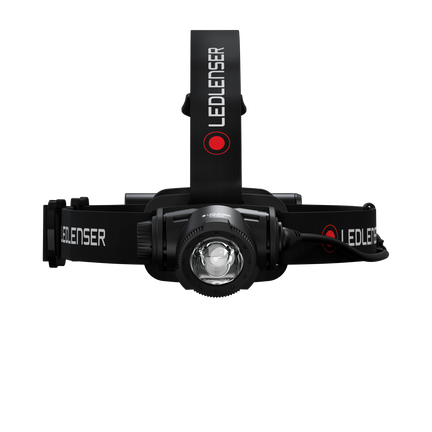

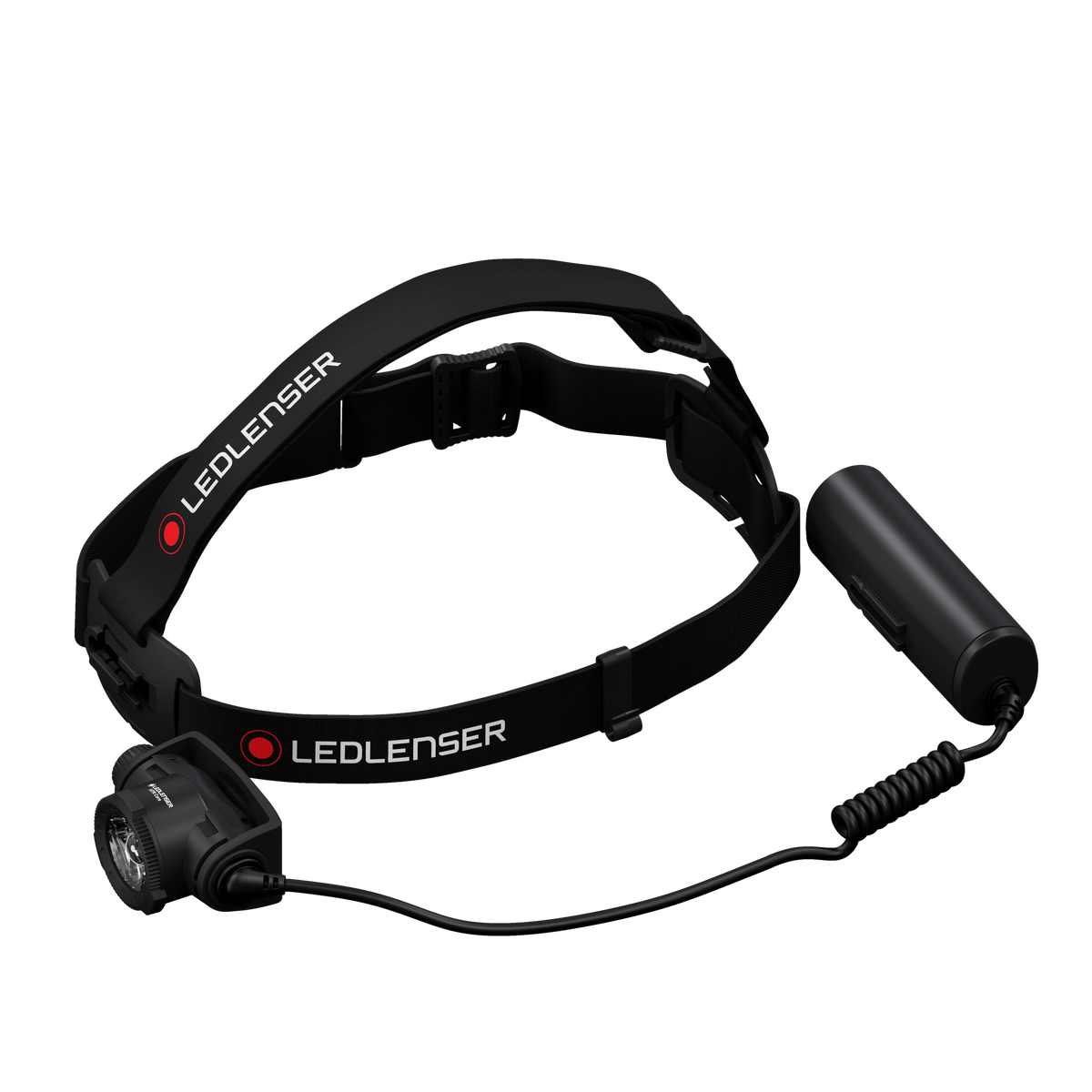

- Washable, elastic and detachable headband with overhead strap.
Light performance
- Boost: 1000 lumens, 250 m beam distance; runtime not specified.
- Power: 600 lumens, 200 m beam distance, 4 hours runtime.
- Low Power: 15 lumens, 25 m beam distance, 65 hours runtime.
Technical specifications
- Weight including battery: 259 g.
- Material: PC and aluminium alloy.

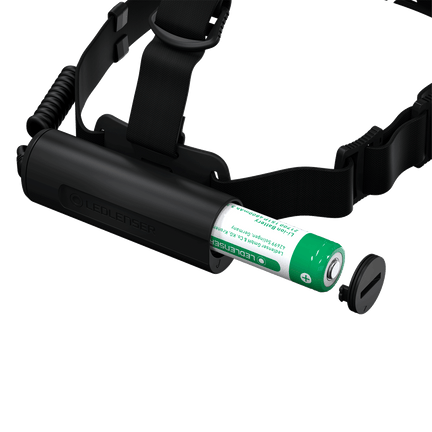

- Battery: 1 replaceable 21700 lithium-ion battery, 3.7 V, 4800 mAh, 17.76 Wh.
- Charging time: 210 minutes.
- Light source: 1 XHP35 HI cool white LED, 6000–7500 K, CRI 70.
- Side multifunctional switch.
- Drop-test height: 1.5 m.
- Working temperature: -20°C to +40°C.
- Colour: Black.
Included
- 21700 Li-ion rechargeable battery, 4800 mAh.

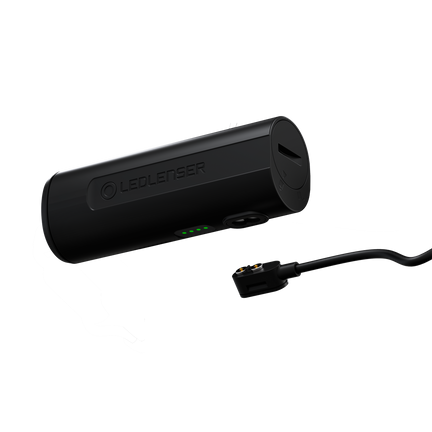

- Magnetic Charging Cable Type A.
Performance values are measured according to ANSI/PLATO FL 1 in the specified setting. Maximum output and beam distance refer to Boost; maximum runtime refers to Low Power. Boost is available only for a short time.
All about the light beam
- Lumens
- 1000 lm
- Beam distance
- 250 m
- Runtime
- 65.0 h
- Rechargeable
- Yes
- Water resistance
- Yes
- IP rating
- IP67
| Lumens | 1000 lm |
|---|---|
| Beam distance | 250 m |
| Runtime | 65.0 h |
| IP rating | IP67 |
| Light modes | Boost: 1000 lm | 250 m | — Power: 600 lm | 200 m | 4 h Low: 15 lm | 25 m | 65 h |
| Type | Headlamp |
| Series | H-Series |
| SKU | 880506-502122 |
All about the power
| Battery type | Lithium-ion |
|---|---|
| Quantity | 1 |
| Voltage | 3.7 V |
| Capacity | 4800 mAh |
| Energy | 17.76 Wh |
| Charging time | 210 min |
Light source
| LEDs | 1 |
|---|---|
| Light color | Cool White |
| Color temperature | 6000–7500 K |
| CRI | 70 |
Specifications
| Weight | 0.57 lb |
|---|---|
| Material | PC, Aluminum alloy |
| Drop resistance | 1.5 m |
| Operating temperature | -20 °C to 40 °C |
| Switch | Side Multifunctional switch |
All about the features
| Feature |
|---|
| Stepless Dimming |
| Transportation Lock |
| Flicker Free |
| Memory Function |
| Backup Mode |
| Advanced Focus System |
| Magnetic Charge System |
| Temperature Control System |
| Flex Sealing Technology |
| Cooling Technology |
What's included
| Included item |
|---|
| 21700 Li-ion Rechargeable Battery 4800mAh |
| Magnetic Charging Cable Type A |
