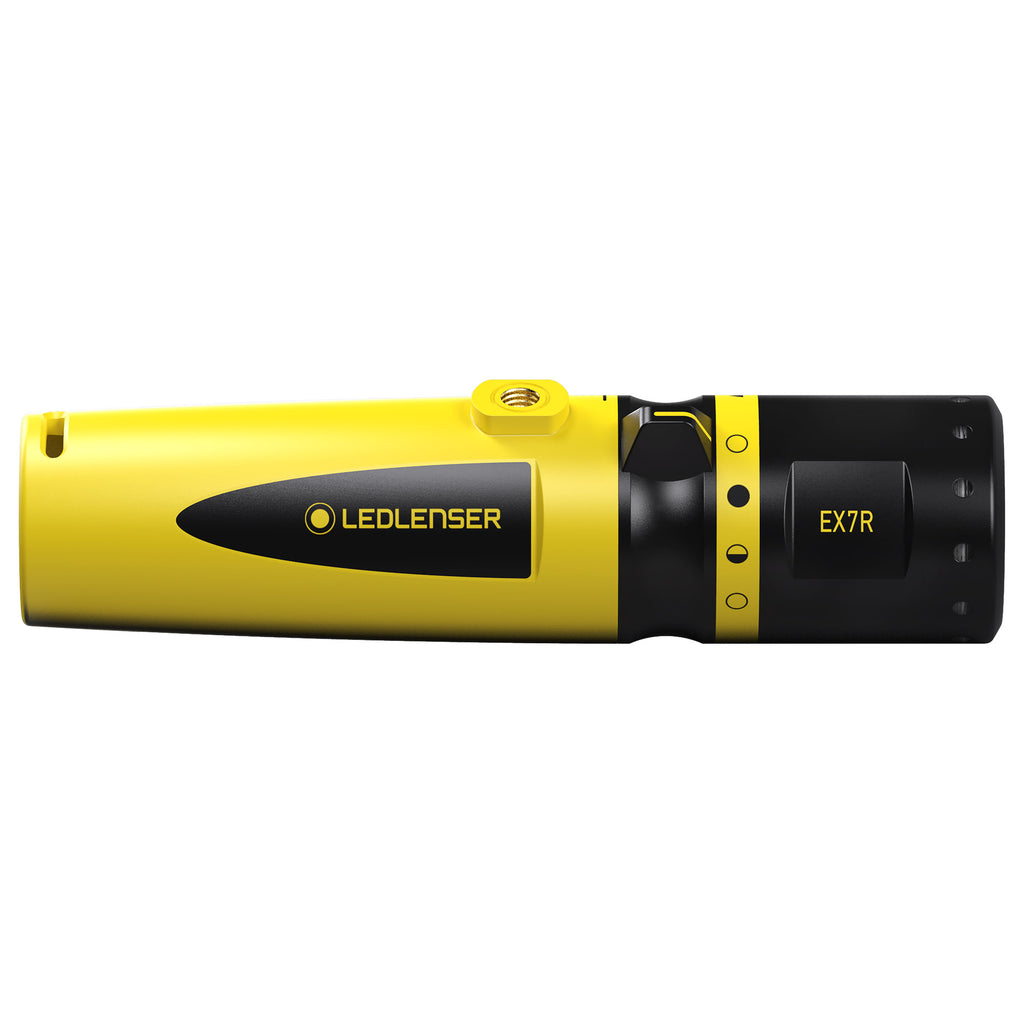

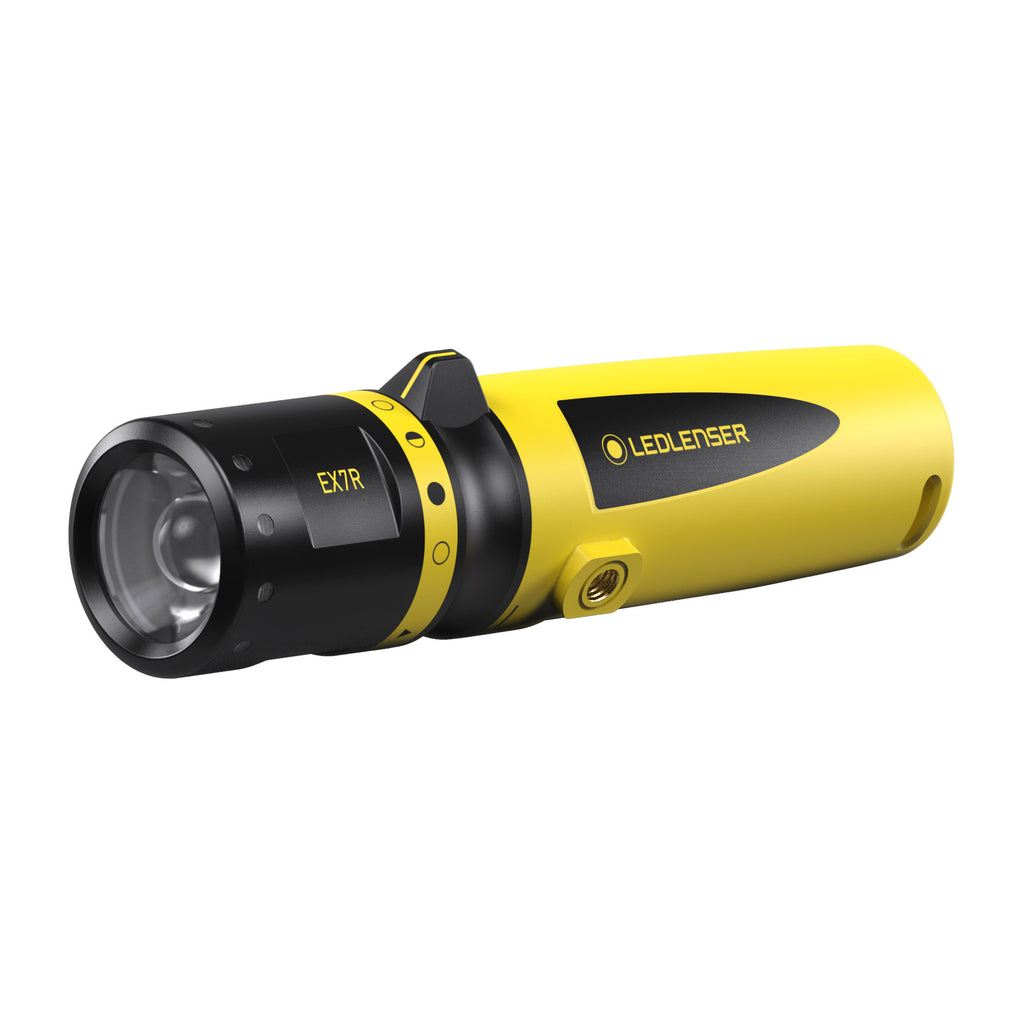

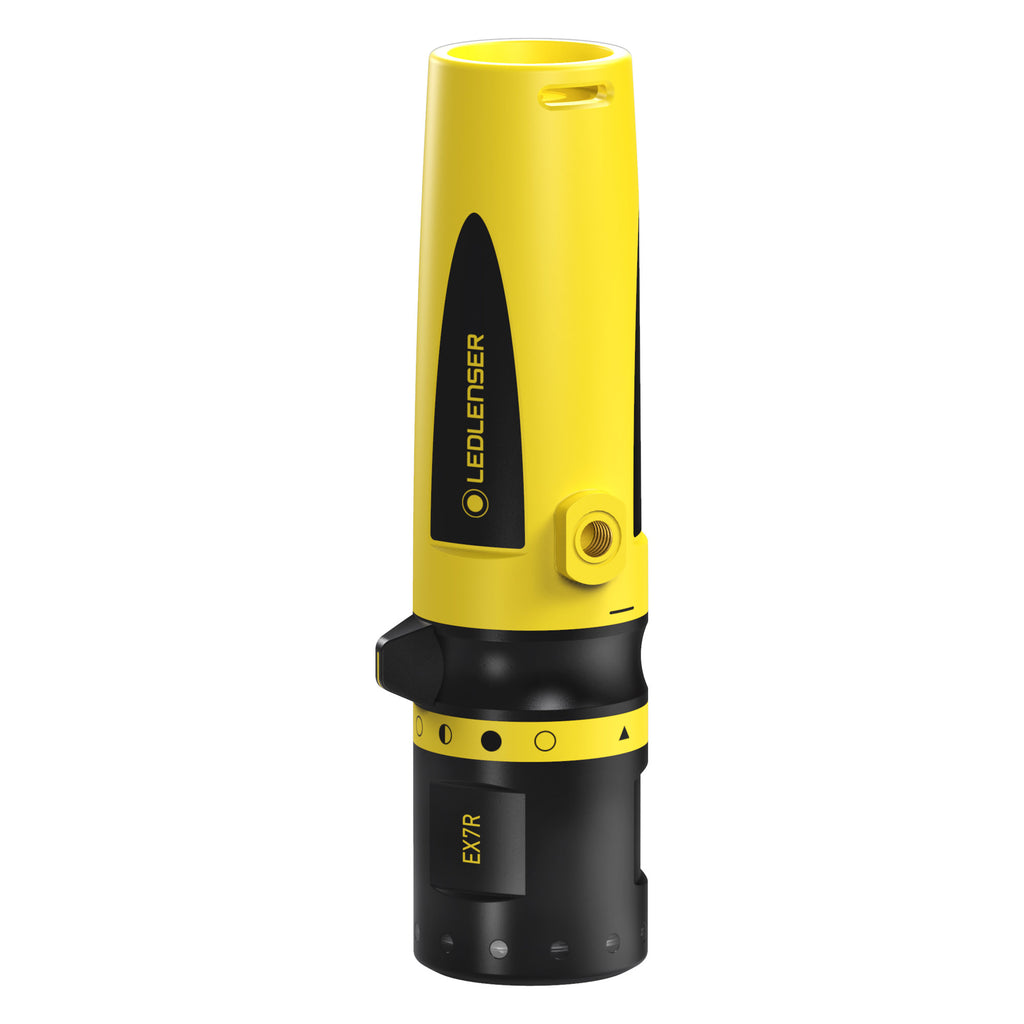

EX7R
Rechargeable EX7R flashlight with glove-friendly magnetic switch and Advanced Focus System. Up to 220 lumens, 140 m beam distance and 45 hours runtime on Low Power.
- Lumens
- 220 lm
- Beam distance
- 140 m
- Runtime
- 45.0 h
- Rechargeable
- Yes
SKU: 880431
Available
Description
This Ex zone 1/21 flashlight makes work easier. The EX7R is certified for gas and dust groups IIC and IIIC in zones 1, 2, 21 and 22 (Ex ib op is IIC T4 Gb, Ex ib op is IIIC T135°C Db). Its magnetic switch makes operation easy with work gloves, while the Advanced Focus System lets you adjust the beam. The included charging cradle recharges the lithium-ion battery.
Features
- Rechargeable via the included charging cradle.
- Magnetic switch for use with gloves and protective equipment.
- Advanced Focus System for an adjustable beam.
- Charge indicator and fixation clip.
- Extreme dust and water protection (IP68).
Light performance
- Power: 220 lumens, 140 m beam distance, 10 hours runtime.
- Low Power: 50 lumens, 65 m beam distance, 45 hours runtime.
Technical specifications
- Weight including battery: 228 g.
- Material: PC.
- Tube and head diameter: 41 mm.
- Battery: 1 replaceable lithium-ion battery, 3.7 V, 3250 mAh, 12.025 Wh.
- Charging time: 660 minutes.
- Light source: 1 cool white LED, 6000–8000 K, CRI 65.
- Drop-test height: 1 m.
- Working temperature: -20°C to +40°C.
Included
- EX18650B1 Li-ion Battery Pack - EX7R / EXH8R.
- Charging tray - EX7R.
- Intelligent Clip - EX7R.
- Power adapter - EX7R.
Performance values are measured according to ANSI/PLATO FL 1 in the specified setting. Maximum light output and beam distance are measured on Power; maximum runtime is measured on Low Power.
All about the light beam
- Lumens
- 220 lm
- Beam distance
- 140 m
- Runtime
- 45.0 h
- Rechargeable
- Yes
| Lumens | 220 lm |
|---|---|
| Beam distance | 140 m |
| Runtime | 45.0 h |
| Light modes | Power: 220 lm, 140 m beam distance, 10 h runtime. Low Power: 50 lm, 65 m beam distance, 45 h runtime. |
| Type | Flashlight |
| Series | EX-Series |
| Best for | Work & Professional |
| SKU | 880431 |
All about the power
| Battery type | Lithium-ion (EX18650B1 Li-ion Battery Pack) |
|---|---|
| Quantity | 1 |
| Voltage | 3.7 V |
| Capacity | 3250 mAh |
| Energy | 12.025 Wh |
| Charging time | 660 min |
Light source
| LEDs | 1 |
|---|---|
| Light color | Cool White |
| Color temperature | 6000–8000 K |
| CRI | 65 |
Specifications
| Weight | 3.44 lb |
|---|---|
| Material | PC |
| Drop resistance | 1.0 m |
| Operating temperature | -20 °C to 40 °C |
| Switch | Magnetic front rotary switch |
All about the features
| Feature |
|---|
| Advanced Focus System |
| Magnetic switch for operation with gloves and protective equipment |
| Rechargeable via included charging cradle |
| Charge indicator |
| Fixation clip |

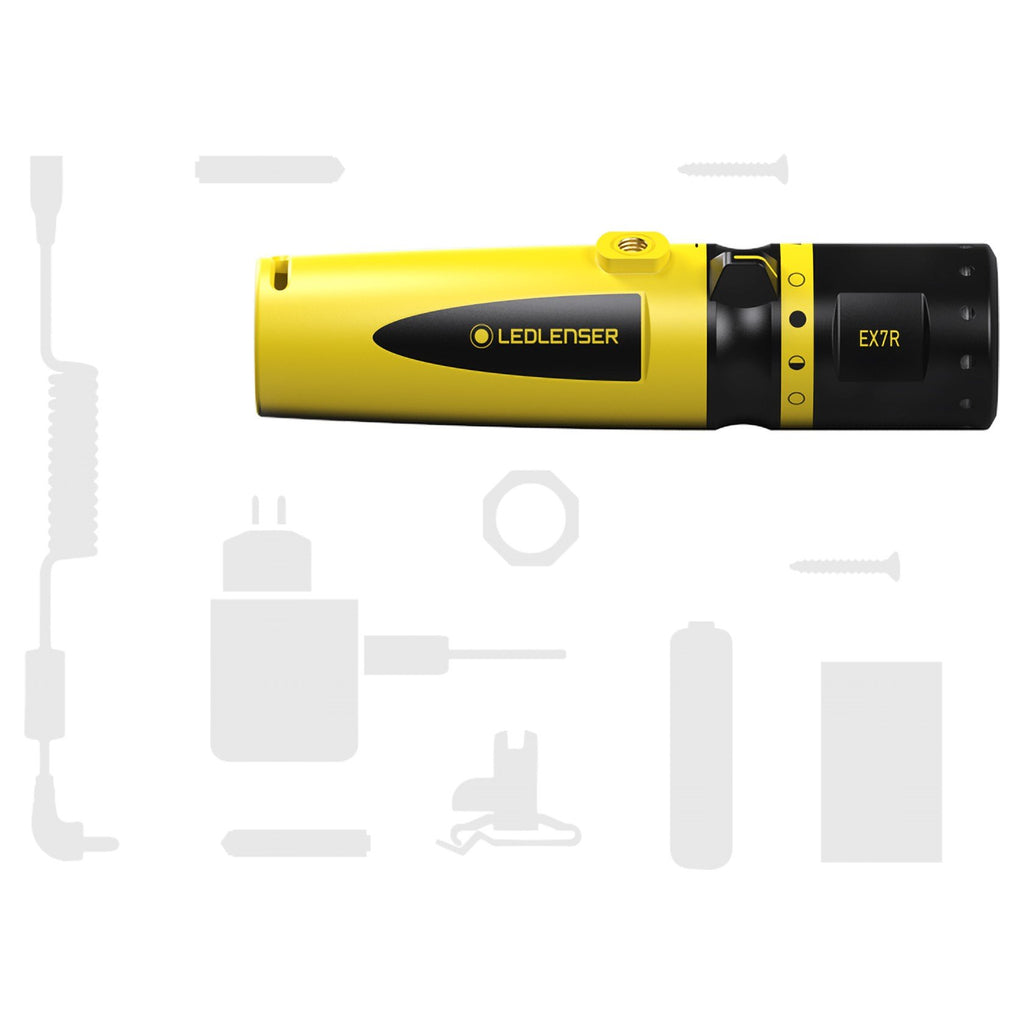

What's included
| Included item |
|---|
| EX18650B1 Li-ion Battery Pack - EX7R / EXH8R |
| Charging tray - EX7R |
| Intelligent Clip - EX7R |
| Power adapter - EX7R |
